Xtrak

icon-rc1234-white
Xtrak is the perfect rugged & waterproof device with long life battery, designed for system integrators and solutions providers. Xtrak is device-only, platform / API and connectivity are optional.

Main Features

  • GPS tracking
  • Button
  • LED visual status indicator
  • Up to 7 years once daily location battery life, up to 4 years daily 9 daily locations
  • Retrieve Previous Locations (Triggered by Platform)
  • IP67 water & dust proof
  • IK10 Impact Protection

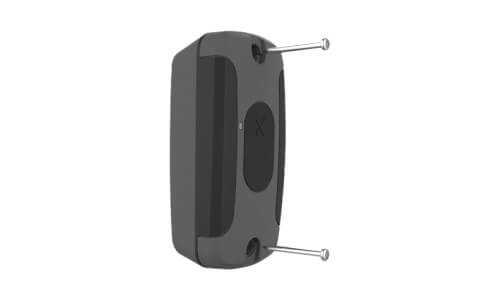

  • Simply place & trace easy installation
  • Configuration Parameters over the air (Basic or above Sigfox air-plan)
  • Battery status and low battery alert
  • Movement Alert (authorised or Unauthorised as per Platform)
  • Integrated accelerometer

Click and drag below for a full render of the device

Selected Solutions

Technical Details

Sigfox Communications: High power radio transmitter/receiver that operates on the Sigfox network, and is available in variants for the various Sigfox Radio Zones around the world.
Sigfox Radiation Class: RC1 & RC4 Sigfox ready, RC2 & RC3 sample ready
Sigfox Regions: RCZ1: Europe, Middle East, South Africa, Pacific Islands RCZ2: USA, Canada, South America RCZ3: Japan RCZ4: Australia, New Zealand, Singapore, Taiwan, South East Asia, South America
OTA Configuration: Parameter changes via Sigfox Downlink (over-the-air configuration). Consult the Xtrak Quickstart integration guide for details.

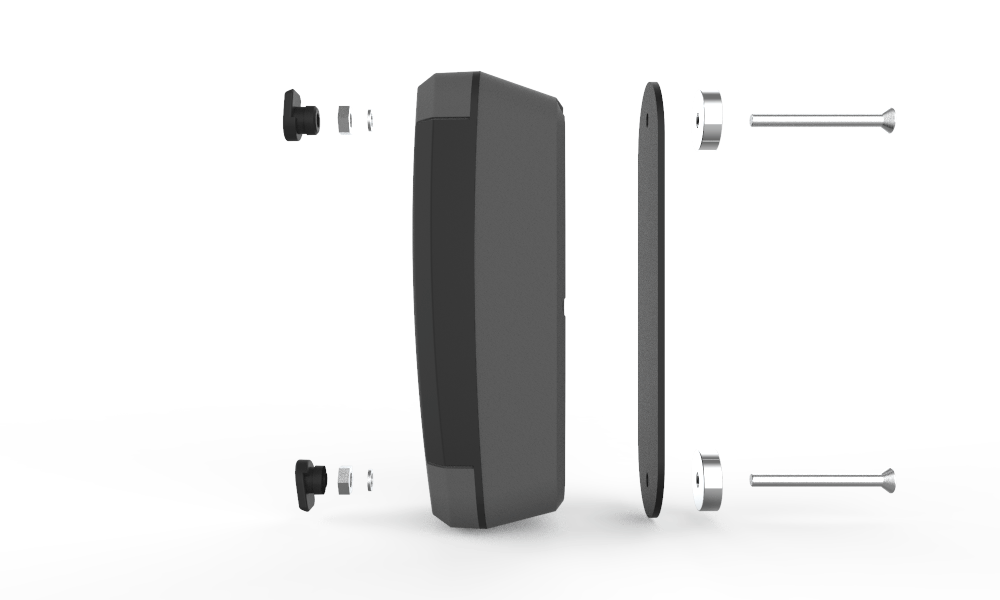

Easy Installation
